Photo-quality over-the-edge retransfer printing
Unlike the standard dye sublimation process, your card design is first printed on a clear film; that film is then adhered to the card surface. This process gives you a higher definition print quality and allows you to print successfully even on smart cards with uneven surfaces. It also gives you additional card durability and tamper-resistance so the cards will last longer.

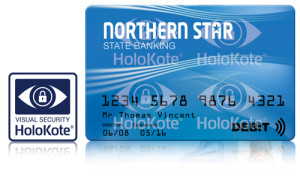

Secure ID Cards with Magicard HoloKote
The Ultima prints a secure watermark across the face of every card– the first reverse transfer printer to offer this. Choose from 10 standard patterns of Secure HoloKote, or create your own custom image as a watermark. UV print option also available.
Photo-quality over-the-edge retransfer printing
Offering reverse transfer printing with built-in visual security, the Magicard Ultima ID card printer is a powerful addition to the Magicard line of printers. With its quick print speeds, large 200-card hopper, high yield 1,000 print ribbons and an easy-to-use touch screen interface, this printer is ideal for large organizations looking for efficient card printing.
Ultima enables you to print up to 100 high definition full color cards per hour. The quality of print means staff can quickly and easily identify the facial features on ID cards for comparison against the holder. This makes it the ideal solution for drivers’ licenses, national ID cards and other cards where security is paramount.
The Ultima retransfer printer comes with built-in visual security via the use of up to 10 secure HoloKote watermarks. That means that if you choose to do so, you can distinguish different departments with a separate holographic design. For additional built-in security, Ultima exploits the wavelengths of the dye-film so it can fluoresce under UV lighting.
High capacity consumables (1000 prints) and hoppers, combined with a range of encoding options to write secure electronic data to the card, make the Ultima ideal for high volume localized or centralized issuance of secure smart cards.
The Magicard Ultima is backed by a 3 years warranty
If you’ve any queries about this product, please contact us here or give us a call at (042) 35341901.
| Printing System | Retransfer |
|---|---|
| Printing Density | 256 colour depth level (8Bit), 300dpi x 300dpi |
| Feed System | Gravity with auto card thickness adjustment |
| Card Hopper | 200 Cards |
| Card output hopper | 200 Cards |
| Printing Sides | Double Sided Printing |
| Display | TFT LCD panel, Size: 4.3 inch, Resolution: 480×272, Resistive touchscreen |
| Encoding | Magnetic stripe ISO 7811 – tracks 1, 2 and 3, JIS2 Contact ISO 7816 and EMV Contactless MIFARE®, DESFire®, Pro, iClass®. Other encoders available, see encoder compatibility matrix |
| Interface | Ethernet 10/100 Ethernet, USB2.0 (Hi-speed / Full Speed) |
| Operating Systems | Mac OS X 10.9.0 upwards. Linux with CUPS support, Microsoft® Windows®10 32bit/64bit, Microsoft® Windows®8 (including 8.1) 32bit/64bit |
| Warranties | 3 years limited warranty |
| Security Features | Standard HoloKote with UV A choice of 10 standard designs |
| Cards thickness | 30 mil (0.76) to 50 mil (1.27) |
| Card Size | ISO CR80 85.6mm x 54mm / 3.375″ x 2.125″ |
| Card Types | PVC, PET, PC, PVH, ABS |
| Mass approx. | 16.74kg (36.90 lbs). |
| Dimensions | 334mm L x 458mm W x 431mm H (13.14” L x 18.03” W x 16.96” H). |
| Temperature | 10°C to 30°C / 50°F to 85°F |
| Power Source | External power supply 100-240V 50-60Hz autoranging |
| Printer Variants | Ultima Uno Single-sided printer 3680-0001 Ultima Duo Double-sided printer 3680-0021 |
